Ori

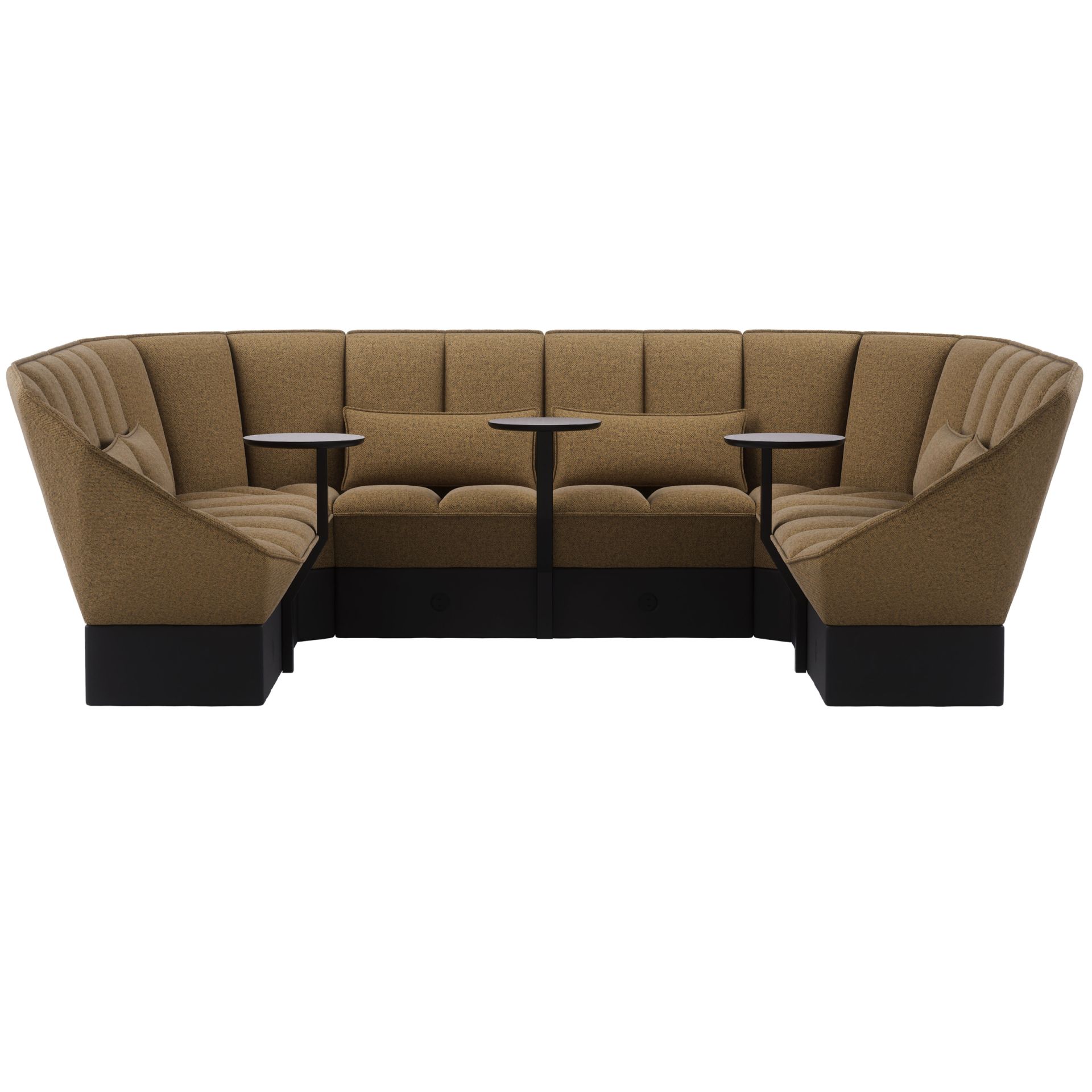

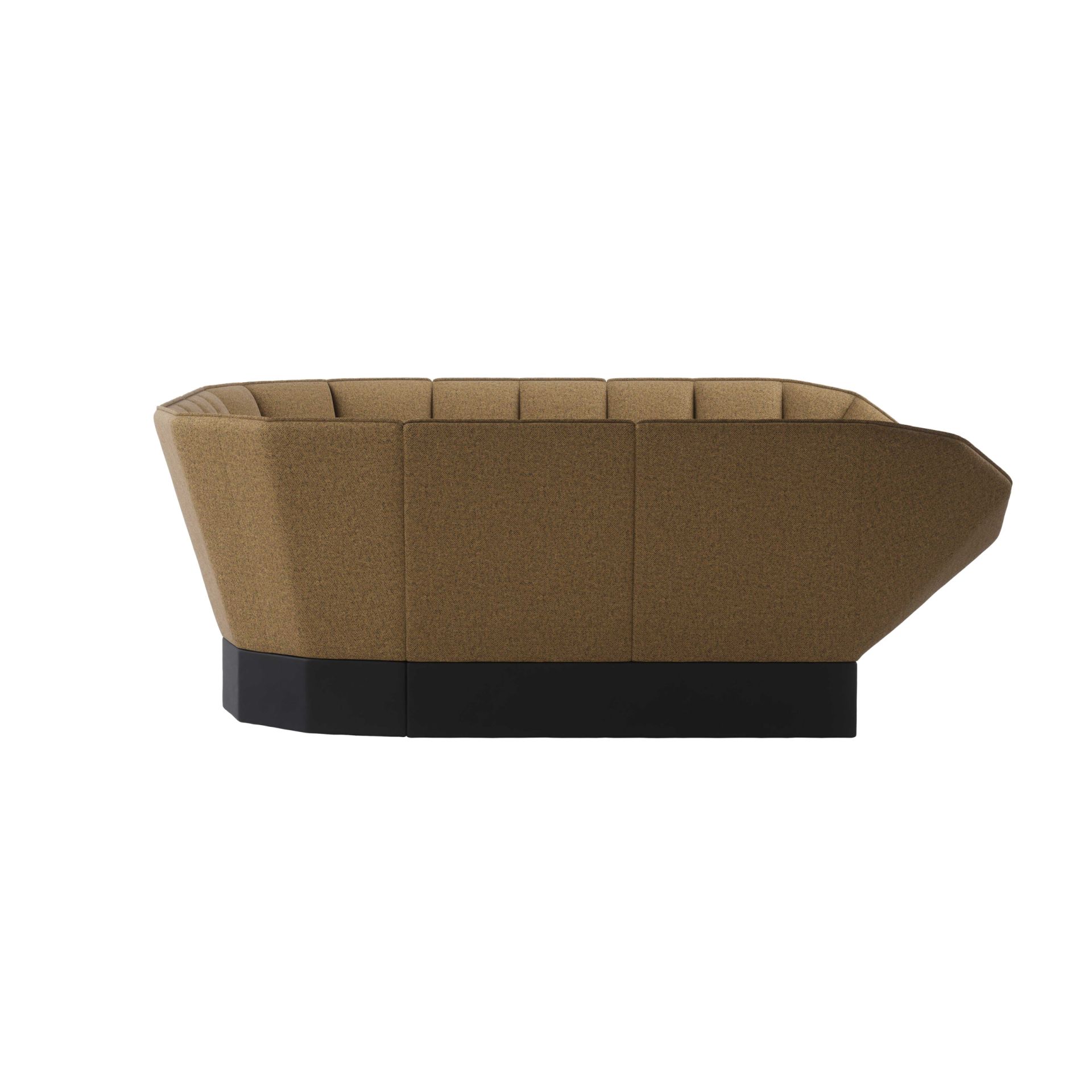

U-shaped sofaOri is a decorative, modular sofa system in the interface between home and office. By combining form and function, Ori meets the need for well-designed and comfortable furniture in tomorrow's office. Ori is avalable with accessories such as power sockets and table.Buildable sofa modules to create seating units for different types of tasks such as focused work or meetings.
Model
U-shaped sofa
Details
Different fabrics can be specified on the plinth and seat. The seating modules caneasily be re-arranged into other setups and more modules can be addes as needed.
Construction
Frame and plinth consisting of plywood, solid wood, OSB board and MDF. Fixed plastic feet. Steel fittings connecting seat and back. Connecting fitting made of lacquered steel wire. Molded PUR-foam parts. Sewn textile upholstery. Adjustable steel feet with plastic bottom as option. Sofa table as option; lacquered steel frame, table top in MDF with veneered surface, lacquered full-radius beveled edge. Optional cushion, textile case with polyester padding.
Guarantee
5 years
Tested
EN 1335 level 1

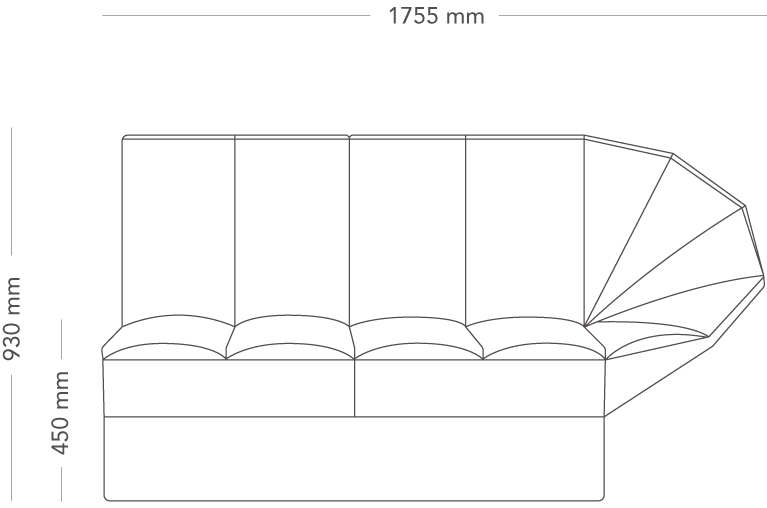

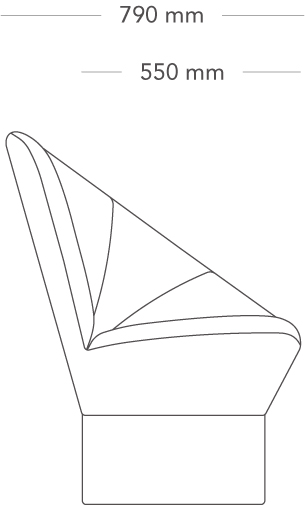

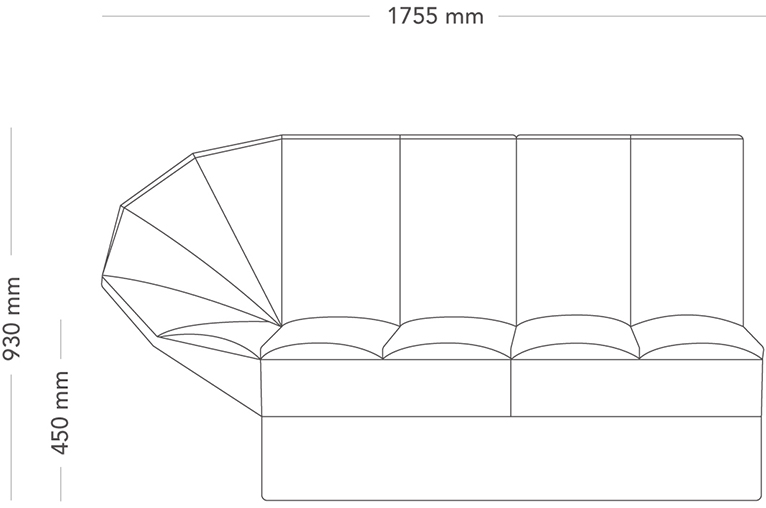

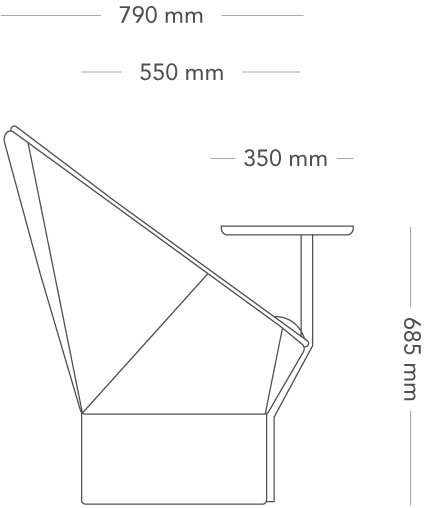

2-seater module, armrest left
| Height | 930 mm |
| Width | 1755 mm |
| Depth | 790 mm |
| Seat height | 450 mm |
| Sit depth | 550 mm |
| Weight | 64.9 kg |
2-seater module, armrest left
| Height | 930 mm |
| Width | 1755 mm |
| Depth | 790 mm |
| Seat height | 450 mm |
| Sit depth | 550 mm |
| Weight | 64.9 kg |

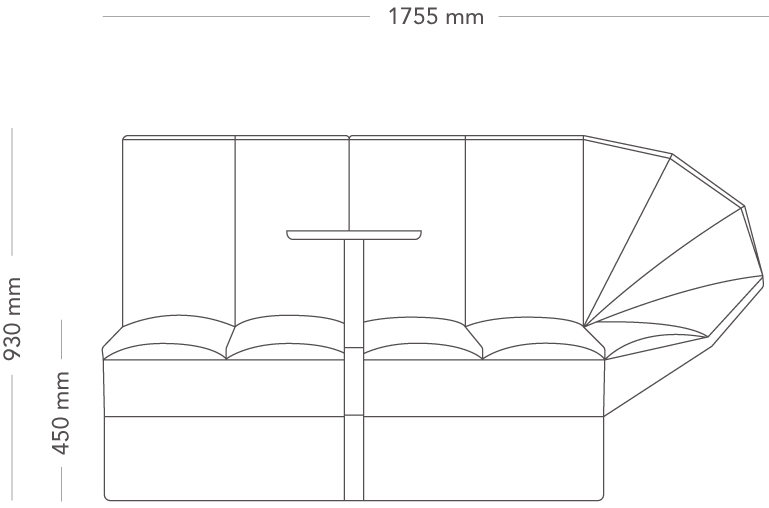

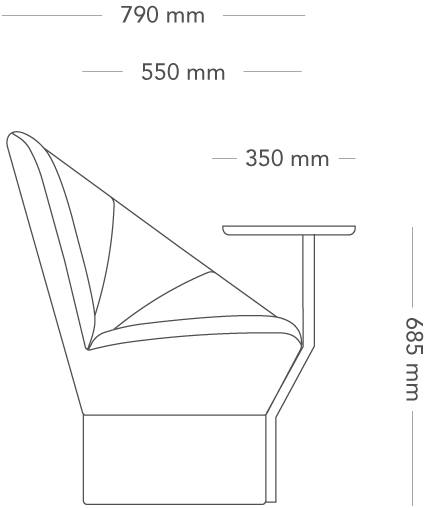

2-seater module, armrest right
| Height | 930 mm |
| Length | 1755 mm |
| Depth | 790 mm |
| Seat height | 450 mm |
| Weight | 64.9 kg |
2-seater module, armrest right
| Height | 930 mm |
| Length | 1755 mm |
| Depth | 790 mm |
| Seat height | 450 mm |
| Weight | 64.9 kg |

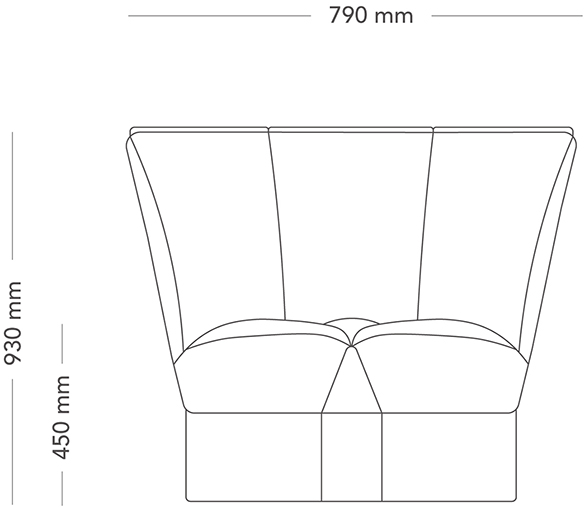

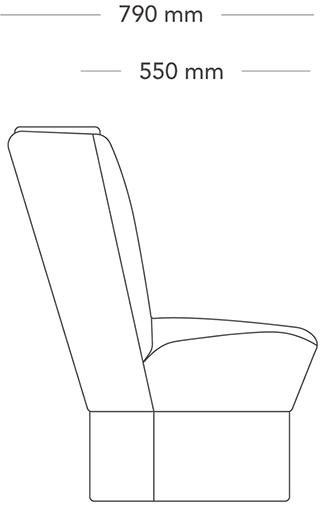

Inner corner module
| Height | 930 mm |
| Width | 790 mm |
| Depth | 790 mm |
| Seat height | 450 mm |
| Sit depth | 550 mm |
| Weight | 29.0 kg |

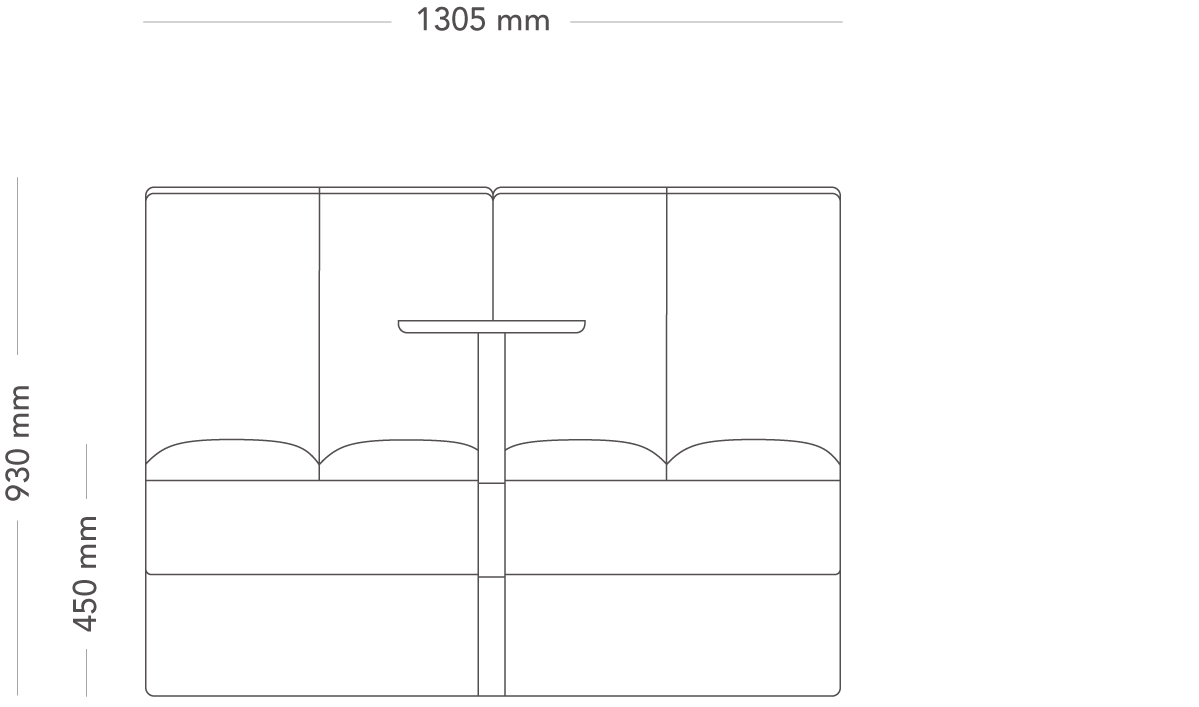

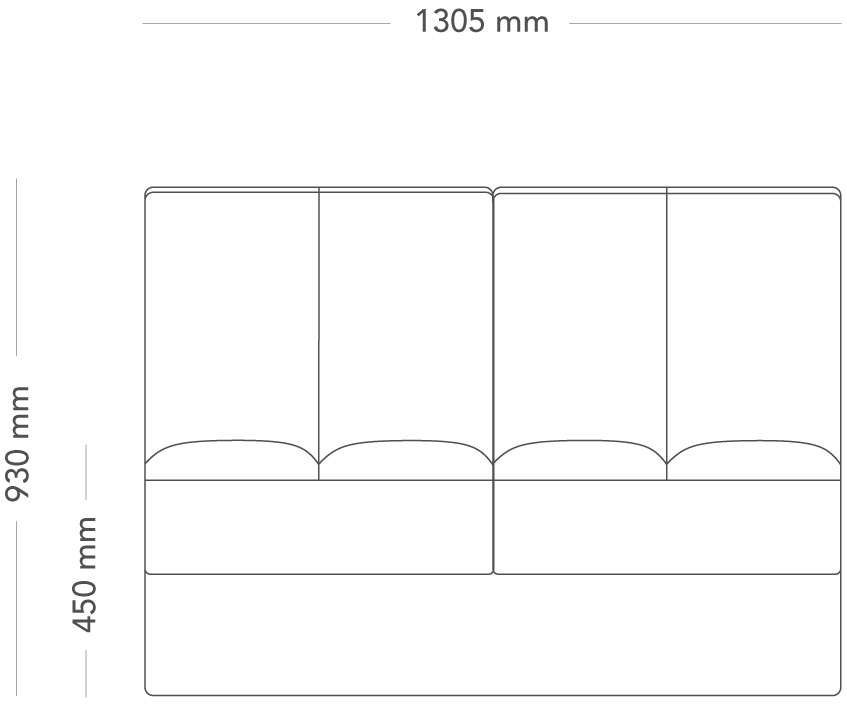

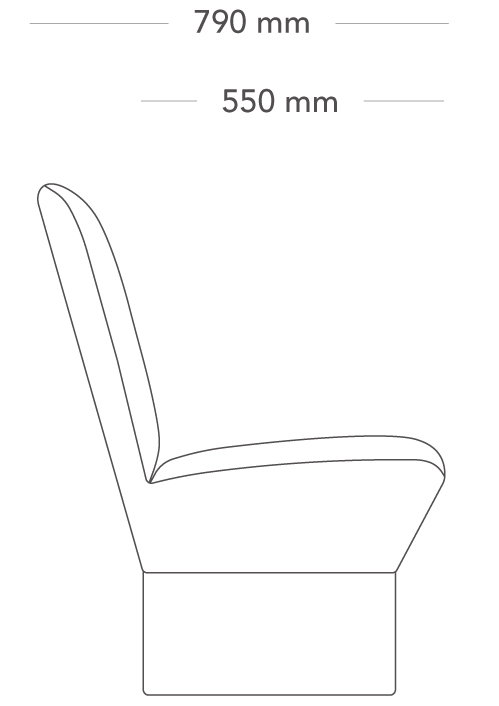

2-seater module
| Height | 930 mm |
| Width | 1305 mm |
| Depth | 790 mm |
| Seat height | 450 mm |
| Sit depth | 550 mm |
| Weight | 57.7 kg |
2-seater module
| Height | 930 mm |
| Width | 1305 mm |
| Depth | 790 mm |
| Seat height | 450 mm |
| Sit depth | 550 mm |
| Weight | 57.7 kg |
Materials
Base
-
Fabric
-
Seat and back
-
Fabric
-
Table top
-
Wood
-
Table frame
-
Lacquer
-
- Name:
- Code:
- Colour code:
- Price group:
- RAL-colour:
- NCS-colour:
- Supplier colour code:
- Composition:
Accessories
-
Electrical accessories
Electrical accessories, Ø 51 mm with 2 USB-C chargers, alternatively 2 USB-A chargers. -

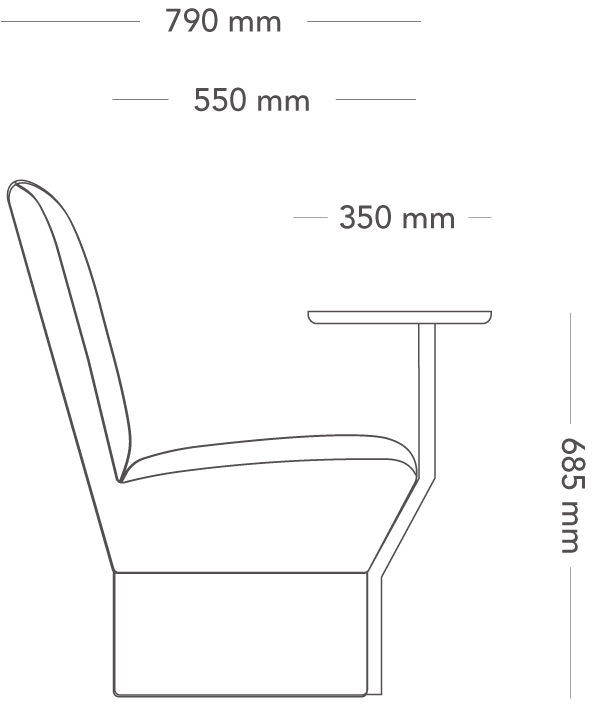

Table
Table. -
Adjustable feet
Metal adjustable feet with plastic bottoms. -
Cushion
Cushion with polyester filling.
