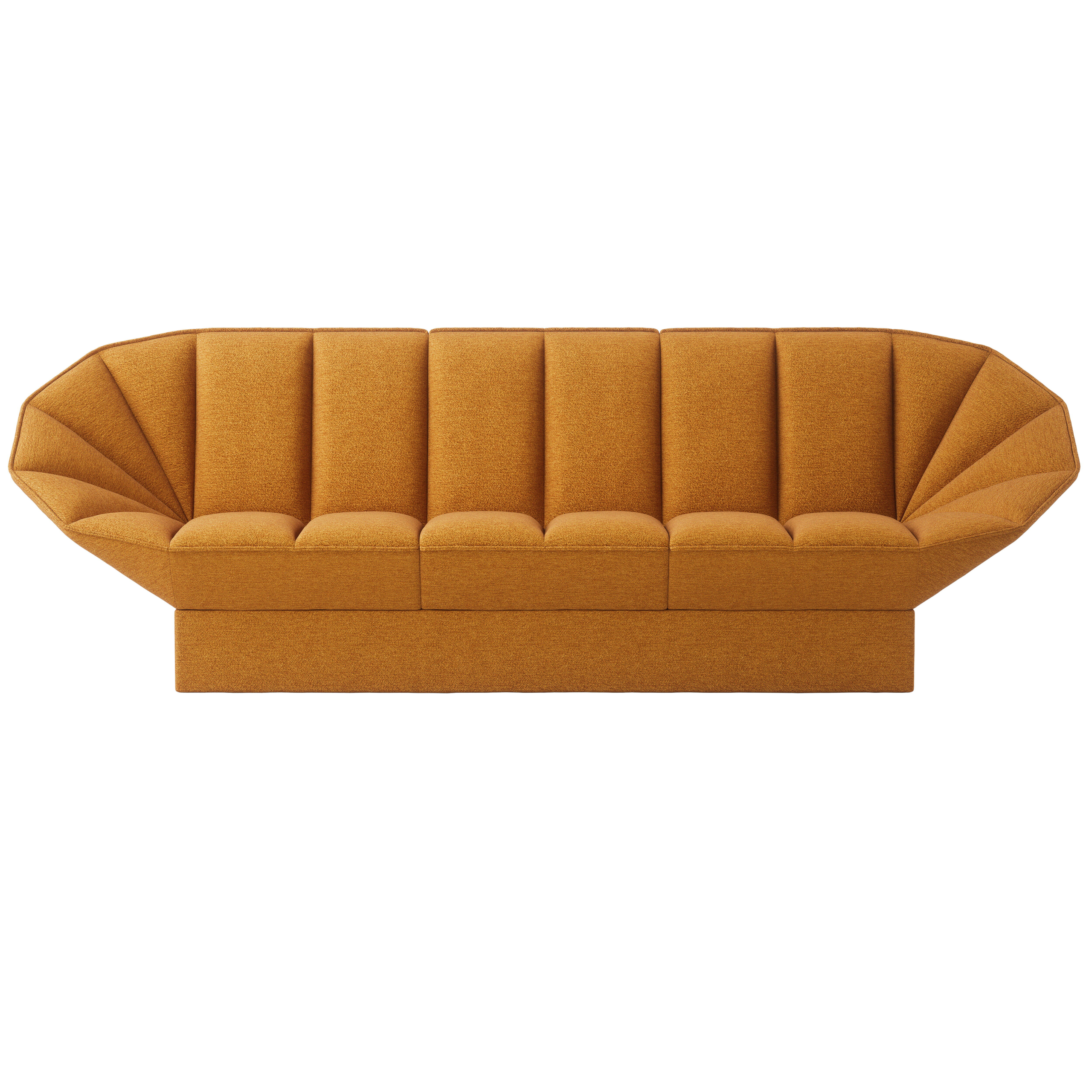

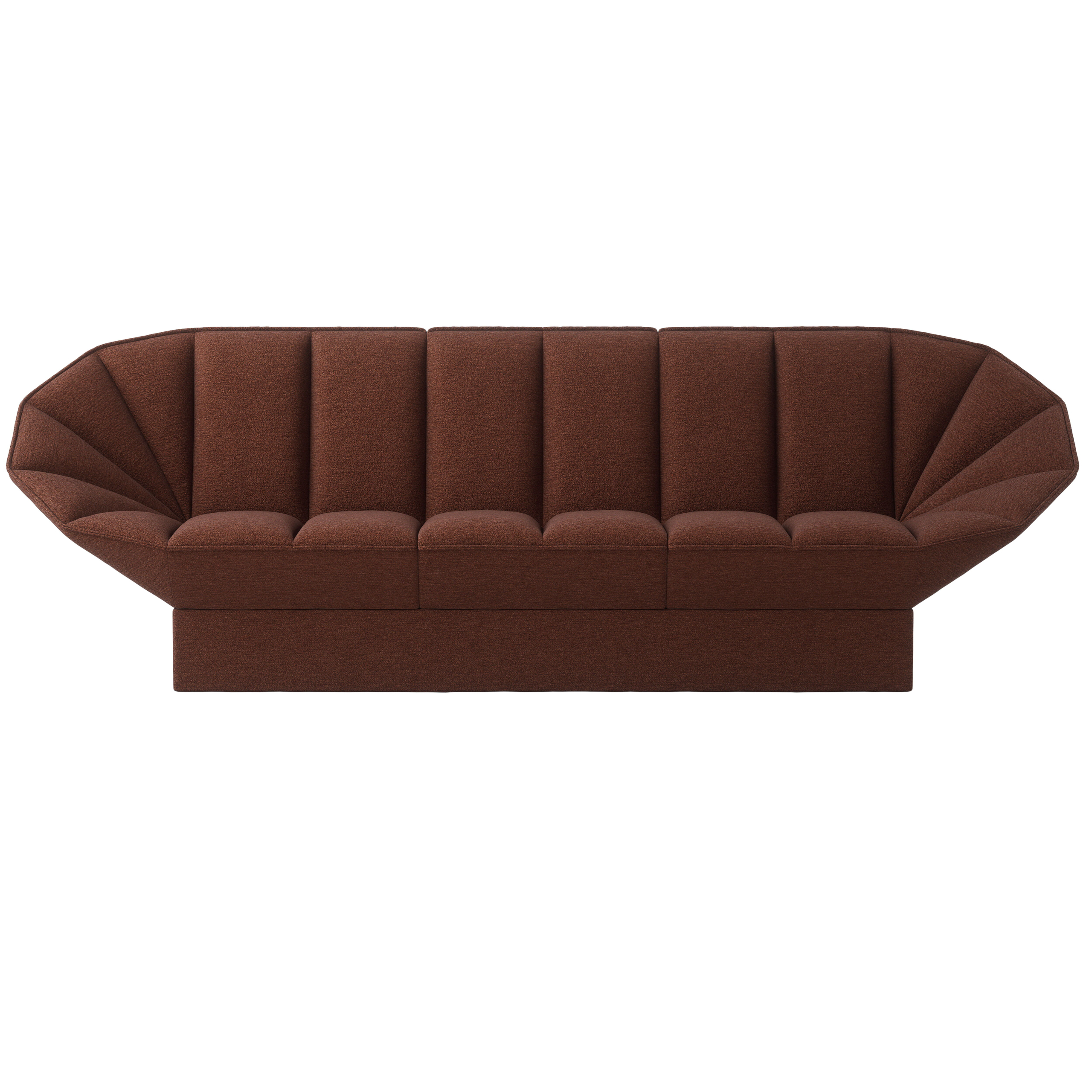

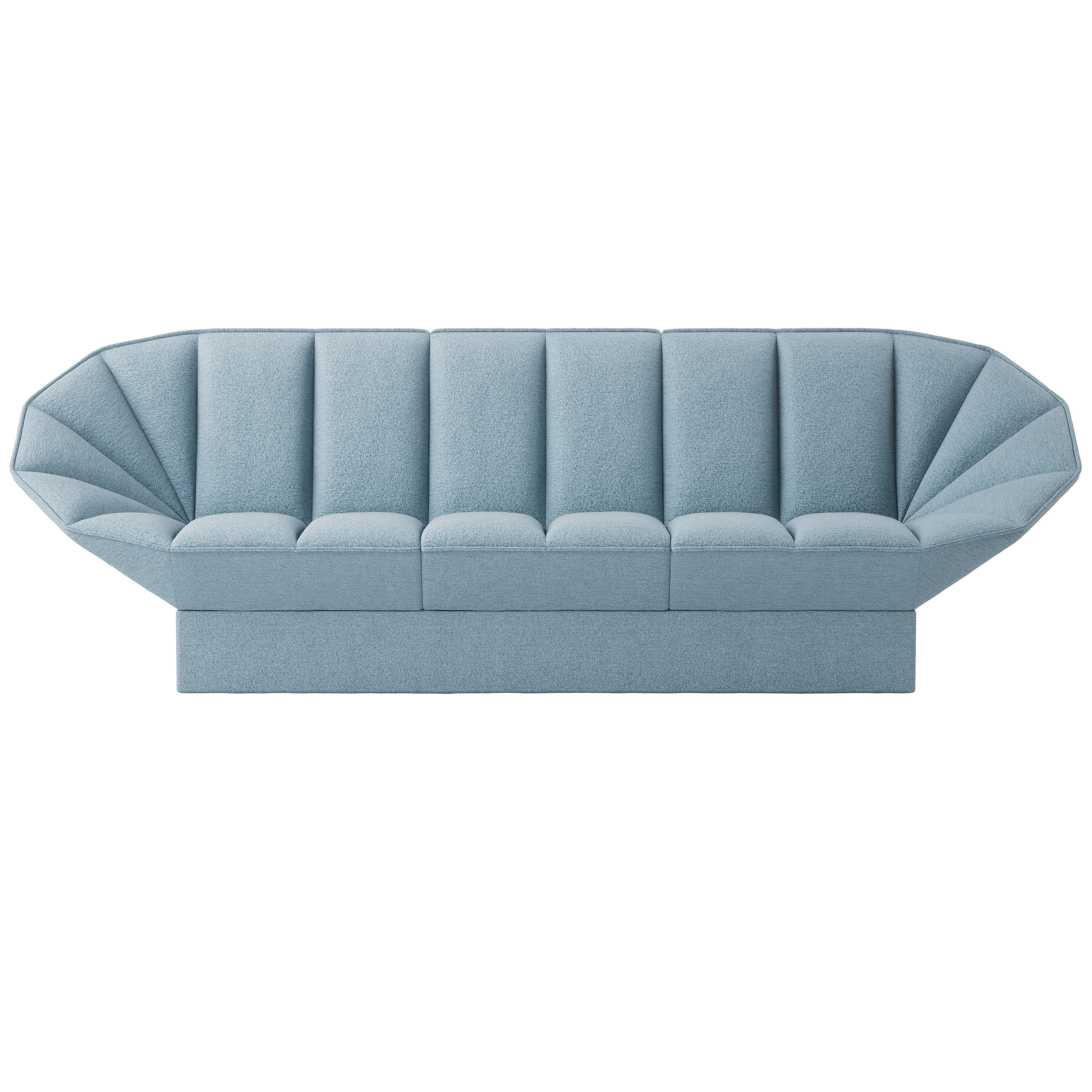

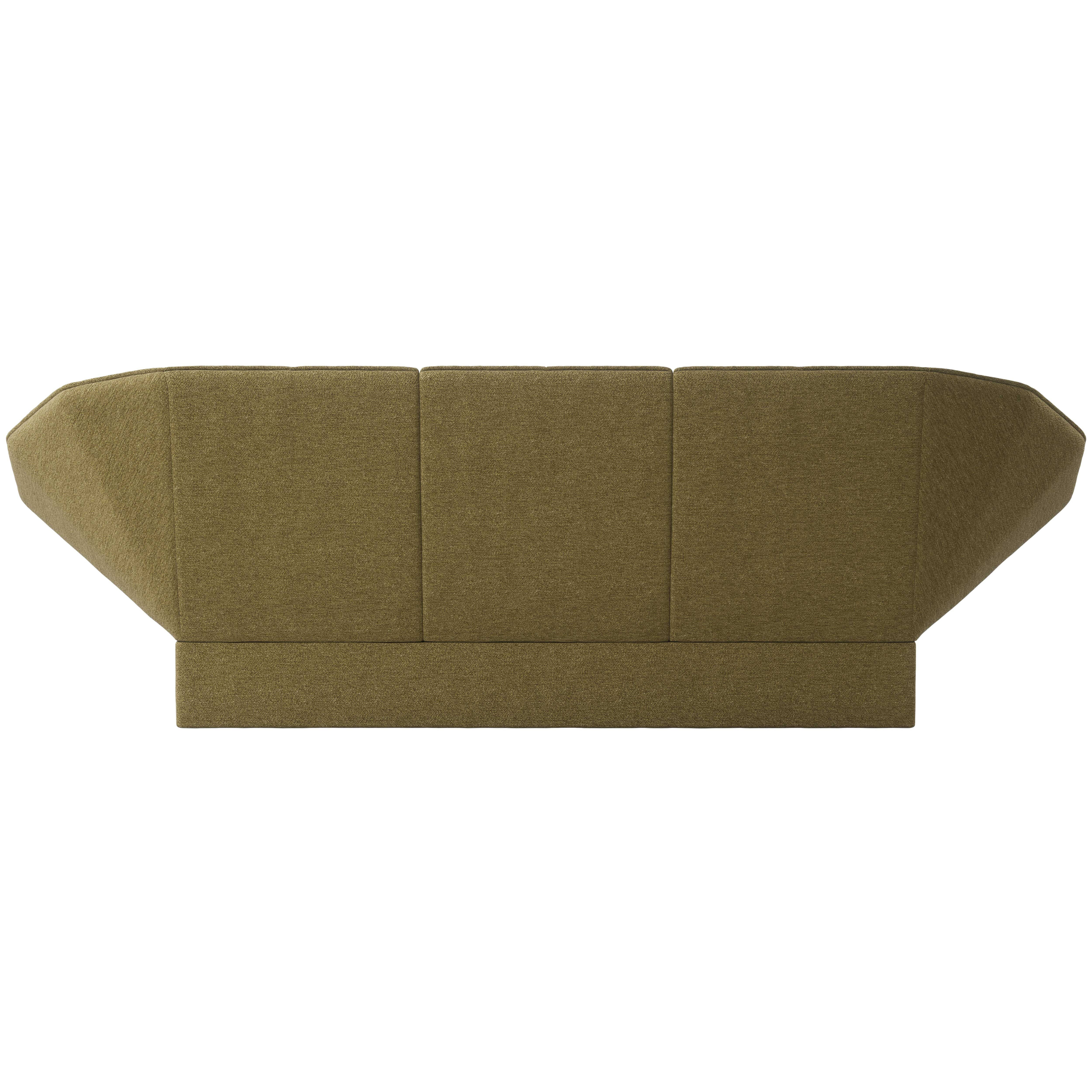

Ori
3- seater sofaOri is a decorative, modular sofa system in the interface between home and office. By combining form and function, Ori meets the need for well-designed and comfortable furniture in tomorrow's office. Ori is avalable with accessories such as power sockets and table.Sofa for different types of tasks such as focused work or meetings.
Model
3- seater sofa
Details
Different fabrics can be specified on the plinth and seat. The seating modules can be rebuilt on other plinths into other modules.
Construction
Frame and plinth consisting of plywood, solid wood, OSB board and MDF. Fixed plastic feet. Steel fittings connecting seat and back. Molded PUR-foam parts. Sewn textile upholstery. Adjustable steel feet with plastic bottom as option. Sofa table as option; lacquered steel frame, table top in MDF with veneered surface, lacquered full-radius beveled edge. Optional cushion, textile case with polyester padding.
Guarantee
5 years
Tested
EN 1335 level 1

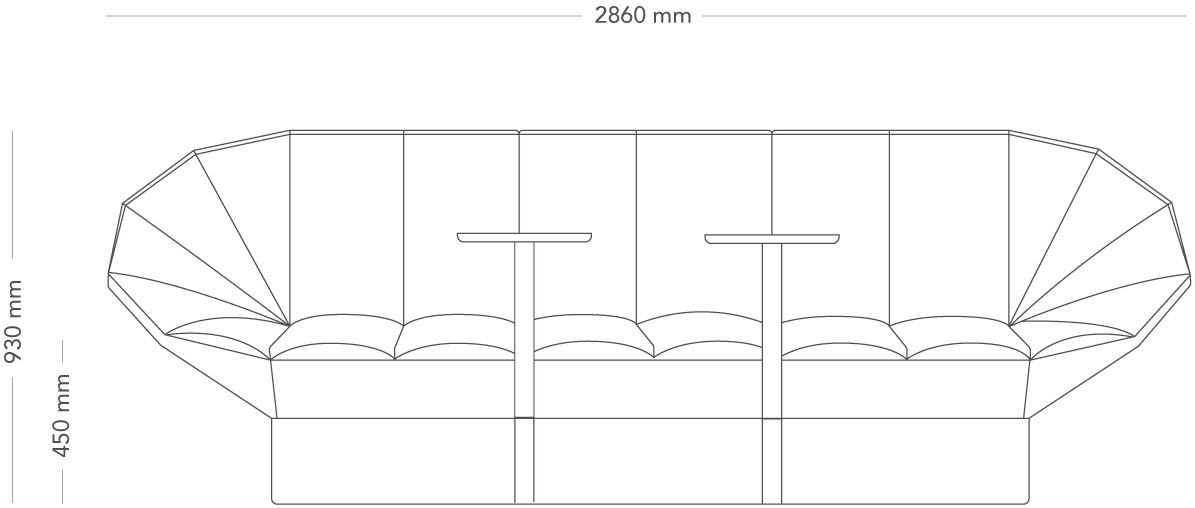

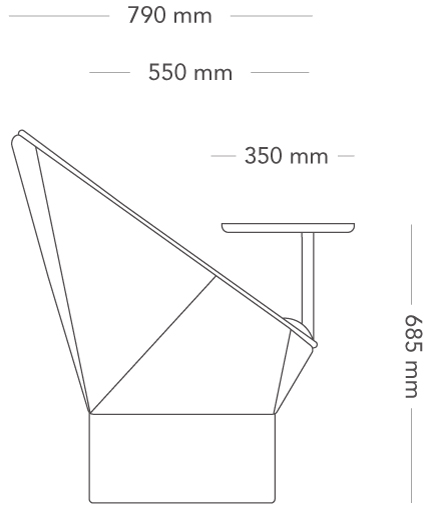

Sofa, 3-seater
| Height | 930 mm |
| Width | 2860 mm |
| Depth | 790 mm |
| Seat height | 450 mm |
| Sit depth | 550 mm |
| Weight | 100.8 kg |

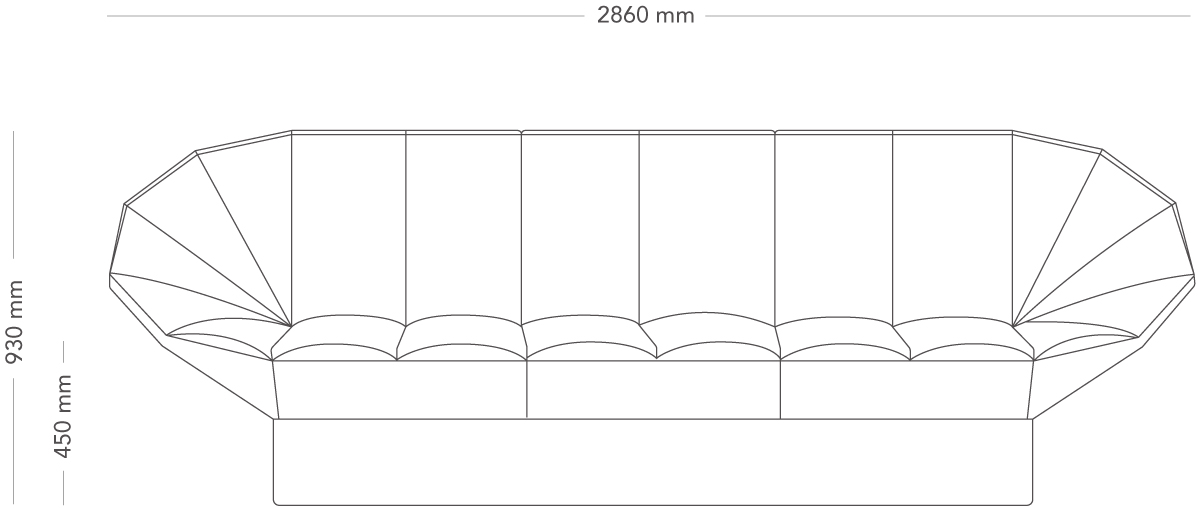

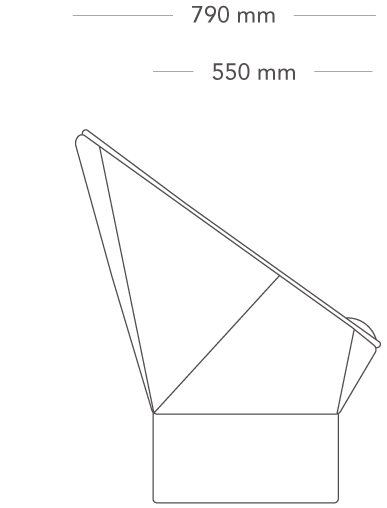

Sofa, 3-seater
| Height | 930 mm |
| Width | 2860 mm |
| Depth | 790 mm |
| Seat height | 450 mm |
| Sit depth | 550 mm |
| Weight | 100.8 kg |
Materials
Base
-
Fabric
-
Seat and back
-
Fabric
-
Table top
-
Wood
-
Table frame
-
Lacquer
-
- Name:
- Code:
- Colour code:
- Price group:
- RAL-colour:
- NCS-colour:
- Supplier colour code:
- Composition:
Accessories
-
Electrical accessories
Electrical accessories, Ø 51 mm with 2 USB-C chargers, alternatively 2 USB-A chargers. -
Table
Table. -
Adjustable feet
Metal adjustable feet with plastic bottoms. -
Cushion
Cushion with polyester filling.
| Certificates and licenses | ||
|---|---|---|
| Ori - Möbelfakta | Share file Download file | |
| Assembly instructions | ||
|---|---|---|
| Ori - assembly instruction | Share file Download file | |
| Product sheet | ||
|---|---|---|
| Ori 3-seater sofa | Share file Download file | |
| Ori - modular sofa | Share file Download file | |
| Models | ||
|---|---|---|
| Ori 3-seater sofa - CAD 2dwg | zip | Share file Download file |
| Ori 3-seater sofa - CAD 3dwg | zip | Share file Download file |
| Ori 3-seater sofa - 3d Studio | zip | Share file Download file |
| Ori 3-seater sofa - ArchiCad | zip | Share file Download file |
| Ori 3-seater sofa - Revit | zip | Share file Download file |
| Ori 3-seater sofa - Sketchup | zip | Share file Download file |
